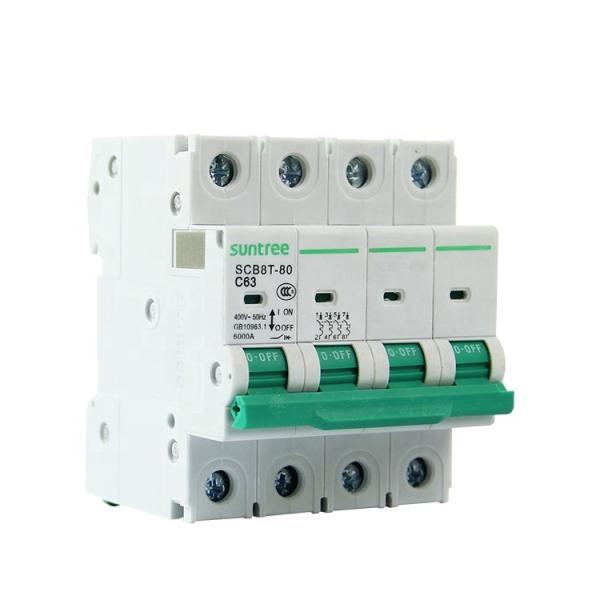

25A MCB AC SCB8T-80H Mini Circuit Breakers

Product Categories
Wenzhou Xinchi International Trade Co.,Ltd
Contact Now

25A MCB AC SCB8T-80H Mini Circuit Breakers

Place of Origin : Zhejiang, China

Brand Name : SUNTREE

Model Number : SCB8T-80H

Supply Ability : 4000 Pack/Packs per Month

Packaging Details : standard packing

MOQ : 30 Piece/Pieces

Price : $5.00 - $15.00 / Piece

Type : Mini

Poles Number : 1P 2P 3P 4P

Product name : circuit breaker price list

Rated current : 6-80A

Rated voltage : 230V/400V

Breaking capacity : 6KA/10KA

Certificate : CE CB ISO9001

Rated frequency : 50/60 Hz

Pole : 1P 2P 3P 4P

Material : thermosetting

Applcation : distribution power system

Brand : Suntree

Port : shanghai/ningbo

Contact Now

Suntree Factory AC Circuit Breaker Price List 25A Overload Protection MCB AC Type

Product Description

1. Themosetting material shell, high stability of Mechanical property and size, Excellent corrosion resistance, and Heat resistance and arc resistance
2. Beautiful appearance, exquisite results, quick tripping, din rail mounting
3. Breaking capacity up to 10000A
4. Optimal design for contact system and trip mechanism
5. Special arc-extinguishing design, More perfect
6. High reliability and long use life
Product Parameters
Type
SCB8T-80
Poles
1P/2P/3P/4P
Rated current
6-10-16-20-25-32-40-50-63-80A
Rated voltage
230V/400V
Characteristic capacity
6KA/10KA
Electrical life
6000times
Mechanical life
2000times
Curve
B,C,D
Certificate
TUV,CE,IEC,GB
Standards
IEC-60898.1
Connection terminal
Screw terminal / Pillar terminal with calmp
Connection capacity
Rigid conductor up to 25mm²
Fastening torque
2.0Nm
Installation
On symmetrical DIN rail 35mm / Panel mounting

25A MCB AC SCB8T-80H Mini Circuit Breakers

Dimensions
25A MCB AC SCB8T-80H Mini Circuit Breakers
Company Profile
XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".
Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable
,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.
Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc
Main markets:Australia,New Zealand,&other worldwide markets
25A MCB AC SCB8T-80H Mini Circuit Breakers
25A MCB AC SCB8T-80H Mini Circuit Breakers
25A MCB AC SCB8T-80H Mini Circuit Breakers
FAQ
Q: When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Can I get a sample for test before place order?
A: Of course!
Q: How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
